- Our Price: $18,999
- List Price: $20,850
- Discount: $1,851
-
Sleeps 8
-
1 Slides
-
BunkhouseOutdoor Kitchen
-
26ft Long
-
5,137 lbs
-
TAN

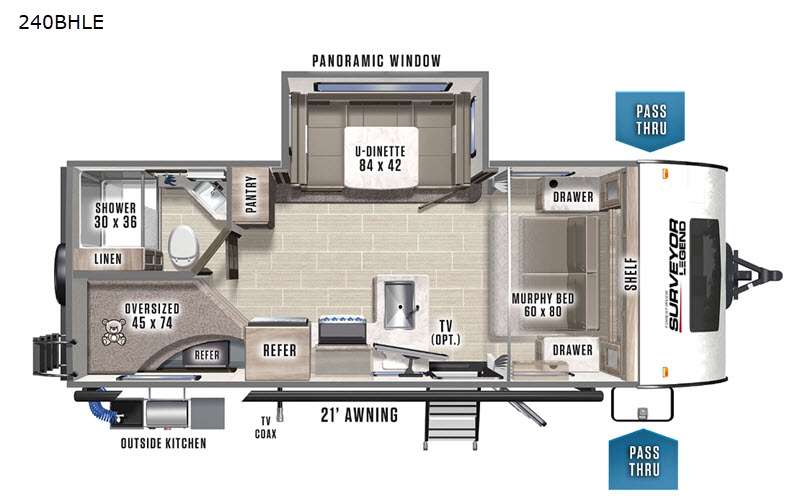

240BHLE Floorplan
Specifications
Sleeps | 8 | Slides | 1 |
Length | 25 ft 11 in | Ext Width | 8 ft |
Ext Height | 11 ft 3 in | Int Height | 6 ft 10 in |
Interior Color | TAN | Exterior Color | WHITE |
Hitch Weight | 517 lbs | GVWR | 7517 lbs |
Dry Weight | 5137 lbs | Cargo Capacity | 2380 lbs |
Fresh Water Capacity | 40 gals | Grey Water Capacity | 40 gals |
Black Water Capacity | 30 gals | Furnace BTU | 30000 btu |
Number Of Bunks | 2 | Available Beds | Murphy |
Refrigerator Type | Residential 12V | Refrigerator Size | 10 cu ft |
Cooktop Burners | 3 | Shower Size | 30" x 36" |
Number of Awnings | 1 | Water Heater Capacity | 6 gal |
Water Heater Type | Gas/Electric DSI with Quick Recovery | AC BTU | 15000 btu |
Awning Info | 21' Electric with LED Lights | Axle Count | 1 |
Shower Type | Standard | Electrical Service | 30 amp |
VIN | 4X4TSVZ20ML040506 |
Description
Forest River Surveyor Legend Murphy Bed travel trailer 240BHLE highlights:
- Panoramic Window
- Bunk Beds
- Outside Kitchen
- Three-Burner Range
- U-Shaped Dinette
Pack up the kids and grab the dog for an unforgettable camping weekend with family in this Surveyor Legend Murphy Bed travel trailer. This unit can comfortably sleep six people, so invite the cousins! The U-shaped dinette within the flush-floor slide is the perfect spot for the kids to enjoy their breakfast, and getting ready for the day is a breeze with a full bath included in this trailer. The oversized bunks are a great addition for the little ones, and the Murphy bed at the front of the unit is both comfortable and functional because it can convert into a sofa for extra seating during the day. You can also close off this space to create a semi-private bedroom with the curtain enclosure. This model also features an outside kitchen that is perfect for cooking the catch of the day!
Only the Forest River Surveyor Legend travel trailer can inspire legendary adventures! The gel-coated fiberglass exterior is outfitted with front diamond plate protection, an integrated front windshield, preparations for rooftop solar power and a rear camera, and an adjustable platform step on the main entry. You'll be able to use the exterior LED speakers whenever you want to play music or a podcast, and the designer Shaw linoleum flooring is a quality base that will clean up easily if you track mud indoors. There are vented side windows in the slide outs so that you can bring in some fresh air, and each model is ready for cable/satellite.
Features
Standard Features (2021)
Artisan Package (Mandatory)
- Extended Camping (15K High Performance A/C, Heat Ducts Concealed in Wall/Cabinets (Sub-4's Ductless) w/Radiant Heat & Heat Duct
- to Underbelly, 10 Cu. Ft. Residential 12V Refrigerator, Azdel Composite Walls, PVC Roof Membrane, Porcelain Toilet, Friction Hinge Entry Door(s),
- Black Tank Flush, Rear Camera Prep, Rooftop Solar Prep, Adjustable Platform Step - Main Entry, USB Ports
- Stainless Steel Undermount Kitchen Sink w/Backsplash, Undermount Bath Sink w/Backsplash
Surveyor Legend Package (Mandatory)
- Integrated Front Windshield, Slow Close Shower Door, Bluetooth Stereo, LED Interior & Exterior Lighting,
- Storage Doors Under Dinette, Pleated Night Shades, Power Tongue Jack, Residential Bath Faucet, Roof Ladder (N/A 202RBLE),
- One Touch Electric Awning w/Led Light strip, Surf(x)® Seamless Countertops T/O, Gourmet Cooking Collection (N/A Sub-4s)
Turn-Key Camp Essentials (Mandatory)
- Outdoor Kitchen - Gas Griddle, Sink, Refer & Side Shelf (Sub-4s Griddle & Shelf), Garbage Can in Bath & Kitchen, Resort Bath Hooks,
- Toothbrush Holder, Vertical Mount Toilet Tissue Holder, Motion Sensor LED Lighting Front Baggage & Walk-In Pantry (Select Models),
- 3/4" Stab Jack Drill Bit & Holder, Oversized Safety Assist Handle, Knife Block & Spoon Holder, Exterior LED Speakers, Custom Logo Laundry Bag,
- Sink Covers, Euro Style Entry Door Handle, Silverware Organizer-Kitchen, High Arc Pull Down Faucet, Platinum Vanity Mirror, Pet Friendly Features
Appliances/Equipment
- 20,000 BTU Furnace (Sub-4s)
- 30,000 BTU Ducted Furnace
- 6 Gallon G/E DSI High Output Quick Recovery Hot Water Heater
- Digital Thermostat Wall Mounted
- Greystone® Gourmet Cooking Collection (N/A Sub-4s)
- Greystone® Convection Microwave (Sub-4s)
- Range Top 3-Burner and 17" Gas Oven w/LED Lights
- Range Top Two-Burner (Sub-4s)
- Stainless Power Range Hood w/Light
Bath
- 12V Power Exhaust Fan
- Heat Duct & A/C Vent (Most Models)
- Privacy Door Lock
- Skylight over Tub/Shower
- Storage Cubbies Easily Stow Toiletry Kit, Blow Dryer, Linens
- Systems Monitor Panel
- Toilet Porcelain Thetford Under-lip Flush & Single Cast Mold
- Window Natural Light & Vented (Select Models)
Bedroom
- 60 X 80 Residential Queen Bed
- Bedding Embossed Coverlet
- Cubbie Storage Area w/110V Outlets & Cup Holders
- Double-Strut Lift Super Storage Under Bed (Most Models)
- Drawer(s) On Each Side Of Bed
- Indura-Kleen Evergreen Mattress (Antibacterial, Hypoallergenic, Mold & Mildew Resistant)
- Oversize Wardrobes -Actually Fit Hangers & Clothes
- Teddy Bear® Bunk Bedding (Bunk Bed Models)
Construction
- 1 1/2" Laminated Aluminum Frame Sidewalls, Rear Wall, & Slide out Walls (R7 Closed Cell Block Foam Insulation)
- 2" Laminated Aluminum Perimeter Floor & Studs (R9 Closed Cell Block Foam Insulation)
- Aluminum Framing All Openings; Windows, Doors, Appliances
- Roof: Trusses 16" On-Center, R14 Insulation, 3/8" Decking
- Underbelly: Lami-Plast™ All Weather Protection Fully Heated & Enclosed
Electrical
- 30 AMP Marine Grade Detachable Power Cord
- 55 AMP Converter w/Charger (35 AMP Sub-4s)
- Battery Disconnect Mounted Front A-Frame
- Cable & Satellite Ready
- GFI 120V Exterior Receptacle Door side
- LED Amber Patio Light
- LED Interior/Exterior Lighting
Exterior
- Two Tone Diamond Ice & White Star Gel-Coated Fiberglass
- Front Diamond Plate Protection
- Dual Battery Rack
- 4" Square Bumper w/Sewer Hose Storage
- Magnetic Baggage Door Catches
Interior
- 82" Ceiling Height (78" Sub-4s)
- A/C Ceiling Vents Adjustable Flow & Direction
- Adjustable Shelves in Pantry (Where Applicable)
- Ceiling Light Switch At Entrance Door
- Designer Shaw® Lino Flooring w/ 7 year Warranty
- Doors Under Dinette
- Long Lasting Wood Drawers w/Ball Bearing Glides
- Modern Frame Edge Cabinets w/Prism Curio Glass On Overheads
- Shaw® Stain & Soil Resistant Carpet (Slide-Outs)
- Vented Side Windows In Slide-Outs
Plumbing
- 12V Demand Water Pump
- Black Tank Flush *Artisan Package
- City Water Fill
- Color Coded Water Lines
- Gravity Water Fill
- Rotocast Fresh Water, Black, Gray Tanks (Underfloor)
- Water Heater Bypass Kit
- Winterization Kit
Running Gear
- 2 5/16" Coupler
- 205/75R15 LRD (Select Models)
- 225/75R15 LRD (Sub-4s & Select Models)
- Automotive Style Wheels
- Lippert Axles Leaf Spring Suspension
- Nitrogen Filled Radial Tires w/Steel Lug Inserts
- Self Adjusting Electric Brakes
- Spare Tire & Carrier
- Super Lube Hubs
Safety and Security
- Brake-Away Switch
- Carbon Monoxide Detector
- Dead Bolt Door Lock
- Fire Extinguisher
- Ground Fault Electrical Circuit(s)
- Heavy Duty Safety Chains
- LP Leak Detector
- Smoke Detector
- Tinted Safety Glass Windows
Legend Options
- 2ND A/C 13.5K Bedroom Requires 50 AMP Service - (276BHLE, 296QBLE, 320BHLE)
- 50 AMP Service Prep 2nd A/C (276BHLE, 296QBLE, 320BHLE)
- 28" TV (Sub-4s)
- 32" TV (202RBLE, 203RKLE, 240BHLE)
- 39" TV (252RBLE, 276BHLE, 296QBLE, 320BHLE)
- Arctic Package (12V Heat Pads On Holding Tanks)
- Bamboo Wood Plank Lino Flooring
- Bike/Utility Rack
- TSS -Trifold Sofa Seat IPO of Dinette 202RBLE and IPO Storage Sofa (252RBLE, 276BHLE, 296QBLE, 320BHLE)
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
