Floorplan - 2017 Jayco North Point 311RKTS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-


- Our Price: $36,999
- List Price: $44,700
- Discount: $7,701
-
Sleeps 5
-
3 Slides
-
Outdoor KitchenKitchen Island
-
12,085 lbs
-
WHITE

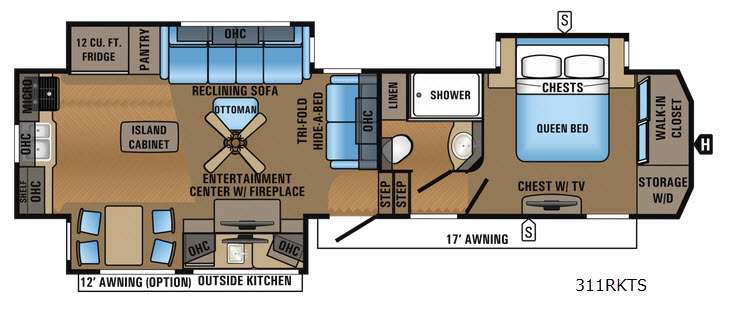

311RKTS Floorplan
Specifications
Sleeps | 5 | Slides | 3 |
Interior Color | WHITE | Exterior Color | WHITE |
Hitch Weight | 2125 lbs | GVWR | 14990 lbs |
Dry Weight | 12085 lbs | Fresh Water Capacity | 75 gals |
Grey Water Capacity | 50 gals | Black Water Capacity | 50 gals |
Tire Size | 16" | Furnace BTU | 40000 btu |
VIN | 1UJCJ0BU8H1LK0053 |
Description
As you enter you will notice the open layout including dual slides in the combined dining and living room space. Just to your immediate left there is a slide out entertainment center with TV and fireplace, storage cabinet, and dining table with four chairs.
The kitchen is found in the rear of this unit and features a spacious layout as well. Along the rear wall find counter space with a center double sink, and a three burner range with overhead microwave. A center island cabinet provides added food prep or serving space. Adjacent in the second slide you have a 12 cu. ft. refrigerator, food pantry, plus a reclining sofa on the opposite end. The sofa features overhead cabinetry, and an ottoman. Along the interior wall there is additional seating with a tri-fold hide-a-bed including more storage above.
Head up the steps just inside the door to your right and find a front master bedroom and complete bath. The bathroom is at the top of the steps to your left and provide a shower, linen cabinet, toilet, and vanity with sink, plus overhead medicine cabinet.
The front bedroom features a relaxing retreat and includes the third slide out. Here the queen size bed, or optional king slides out along the road side wall and features shelves on either side. Opposite the bed there is a chest of drawers with a TV cabinet overhead. Along the front wall enjoy the walk-in closet with storage shelves, and additional storage space that has been prepped for a washer and dryer, in the corner, if you choose to add.
On the outside of this North Point model 311RKTS enjoy an outdoor kitchen with refrigerator, single sink, plus storage. There is also a 17' awning over the front entry door area. You can add a second optional 12' awning that would cover the outside kitchen. There is also exterior storage for your outdoor gear, plus so much more!
Features
- 15,000-BTU central A/C
- Arched interior ceiling with 82” upper deck interior height
- Bath skylight
- Bathroom power vent
- Bedspread
- Under-bed floor safe
- Oversized folding exterior grab handle
- Frameless G20 dark-tinted windows
- LED interior lighting
- Security lights
- Slam-latch baggage doors with strut assist
- Sofa and bed pillows
- Solid-surface kitchen countertops
- Keyed Alike exterior doors locking system
Luxury Fifth Wheel Package (Mandatory)
- 6-point electric auto leveling system
- Backup camera/monitoring system prep
- Carefree power awning with Flex Guard Fabric Shield and LED light strip
- Indoor/outdoor central vacuum system with kick pan
- Franklin American-made residential furniture
- 12” Magnum Frame System
- Magnum Truss XL6 Roof System
- Helix Cooling System featuring a Jayco-exclusive duct design, exterior-mounted A/C units, directional/closable A/C vents, and larger return air vents with user accessible filters
- Quad-tread aluminum entrance steps
- Bluetooth/HDMI high-output entertainment system
- Cargo accessory receiver
- Electric, thermostat-controlled fireplace
- Keyless main entrance door
- LED exterior lighting
- MOR/ryde pin box
- Oversized battery compartment
- Fully painted and clear coated front cap
- Power kitchen vent with wall controls and rain sensor
- Sidewall and roof mount solar prep
- Whole coach water purification system
- Full-timer kitchen storage system
North Point Advantage Package (Mandatory)
- Big-screen LED HDTVs in living areas
- 32-inch LED HDTV with integrated DVD player in bedroom
- High-gloss, hand-rubbed, maple hardwood cabinet doors
- High-gloss, premium fiberglass exterior
- MOR/ryde CRE/3000 rubberized suspension system
- Single-roller blackout shades throughout
- Remote control system for levelers, awnings, slide out rooms and exterior lights
- Jayco luxury sleep system with 80” Simmons residential foam-top mattress
- TuffShell vacuum-bonded, laminated walls
- Aerodynamic front cap with LED lighting
- Seamless composite roof covering
- Climate Shield: Enclosed, insulated, heated underbelly, High-BTU output furnace (40,000-BTU), Astrofoil in roof and floors
- 12-inch I-class cambered, structural I-beams
- Completely enclosed and protected slideout mechanisms
- 30-inch x 72-inch entry door with oversized window
- Screen door with kick panel
- Convenience outlet located on front awning arm
- 16-inch radial tires
- 7,000-pound axles
- Wide-stance front landing gear
- Exterior kitchen with 32-inch LED TV, sink, refrigerator and cooktop range (311RKTS, 351RSQS, 375BHFS)
- Exterior kitchenette with refrigerator and cooktop range (377RLBH)
- Enclosed, protected basement drop-frame
- Stor-Galore pass-through basement storage
- Cable TV/110V outlets in basement
- Exterior marine-grade speakers (2)
- Convenient dual propane compartment (60-pound capacity) on roadside
- Doorside compartment framed and vented for 3rd propane bottle
- Heated, enclosed Uni-Dock utility center
- 50-amp service with detachable power cord
- 40,000-BTU furnace (minimum)
- 75-gallon fresh water tank
- 70-gallon gray tank capacity (minimum)
- 44-gallon black tank capacity (minimum)
- Cable/satellite TV prep
- No Crank digital HD TV antennae
- Under-mounted spare tire
- Outside grill prep
- Roof ladder
- Hitch light
- All exterior lighting is LED
- Upper deck slide out room convenience light
- EZ Cord cargo area extension cord access port
Interior Equipment
- Raised-panel cabinetry with screwed construction and hidden hinges
- Steel ball-bearing drawer guides, 75-pound capacity, full extension
- Hardwood slide out fascia
- Large, split, under-mount stainless steel sink with sink covers
- Pull-out kitchen faucet with sprayer
- Water heater bypass
- 12-cubic-foot Norcold gas/electric refrigerator
- Recessed, flush-mounted, oversized, 21-inch oven with 3-burner cooktop and range cover
- Stainless steel, 30-inch, residential, over-the-range microwave
- USB charging centers in living areas, kitchen and bedrooms
- Residential-grade wood-plank vinyl flooring
- Shaw R2X stain-resistant residential carpeting
- Free standing table with 2 dinette chairs and 2 folding chairs (optional on 375BHFS)
- 90-amp power center with Charge Wizard
- Backlit command center for switches
- Floor-level convenience light switch for safe entry
- Night light toe kick lighting in bedroom, bathroom, and kitchen
- Ceiling fan (n/a 383FLFS, 387RDFS)
- Kitchen ceiling mantle
- Closeable and directional A/C vents
- Prep for second A/C – prewired and tied into ducting
- Prep for third A/C (383FLFS, 387RDFS)
- Trifold hide-a-bed sofas with ottoman (bi-fold sofa in 375BHFS)
- Reclining theater seat sofas (n/a on 375BHFS)
- 2 recliners (375BHFS)
- One-piece, fiberglass shower with glass doors
- Porcelain bath stool with foot flush
- Utility hooks in bathroom
- Full-trunk, under-bed storage
- Walk-in-style front closet with dual hanging rods
- Washer/dryer prep (accommodates stackable unit)
- Oversized bedroom dresser storage
- Bedroom slide fascia built-in night stand storage system (n/a 383FLFS)
Options
- Canadian Standards
- Customer Value Package
- Customer Value Package (w/ 15,000 BTU A/C & Heat Pump)
- Jayco Luxury Fifth Wheel Package
6 pt. Electric Auto Leveling System, Backup Camera Prep, Bluetooth/HDMI Entertainment System, Cargo Accessory Receiver, Carefree Power Awning with Flex Guard Fabric Shield & LED Light Strip, Central Vacuum, Electric Fireplace, Keyless Main Entrance Door, Franklin Brand Residential Furniture, LED Exterior Lighting, 12" Magnum Frame System, Magnum XL6 Roof Truss System, Oversized Quad Aluminum Tread Entrance Steps, Mor/Ryde Pin Box, Oversized Battery Compartment, Painted Gelcoat Fiberglass Front Cap, Power Kitchen Vent, Solar Prep, Helix Cooling System, Whole Coach Water Purification System, Fulltimer Kitchen Storage - North Point Package
Big Screen LED HDTV in Living Areas, Jayco Luxury Sleep System/Simmons Residential Foam Mattress, High Gloss Hand Rubbed Maple Cabinet Doors, High Gloss Premium Fiberglass Exterior, Mor/Ryde CRE 3000 Rubberized Suspension System, Single Roller MCD Blackout Shades Throughout, Remote Control System for Levelers, Awnings, Sliderooms & Exterior Lights, 32" Bedroom TV w/Integrated DVD Player - King Bed (301RETS, 311RKTS, 315RLTS, 351RSQS, 377RLBH, 379DBFS, 381DLQS, 383FLFS, 387RDFS)
- Bunk Bed w/Trundle (375BHFS)
- Bunk Bed w/Hide-A-Bed (375BHFS, 377RLBH, 379DBFS)
- On Demand Tankless Water Heater
- Convection Microwave w/Oven
- Carpet in Living Area (301RETS, 3111RKTS, 315RLTS, 351RSQS, 377RLBH, 381DLQS, 387RDFS)
- Free Standing Table with (4) Chairs (375BHFS, 379DBFS)
- Reclining Sofa (301RETS, 315RLTS, 351RSQS, 377RLBH, 381DLQS, 387RDFS)
- Recliner Chairs ILO Theater Seating (2) (301RETS, 377RLBH, 381DLQS)
- 23 cu. ft. Residential Refrigerator w/1,000 Watt Inverter
- Backup Camera
- Tailgate TV: 39" TV in Cargo Area (301RETS, 315RLTS, 377RLBH, 381DLQS, 383FLFS, 387RDFS)
- 2nd A/C (Low-Profile) in Bedroom (15K BTU)
- 3rd A/C (Low-Profile) in Living Area (15K BTU) (383FLFS, 387RDFS)
- Manual Cord Reel
- Sani-con® Turbo Waste Management System
- 16" G Rated Goodyear Tires & Rims
- MANDATORY: Goodyear Tire Option (Made in the USA)
- Generator Prep with 120lb Max LP System
- 5500 Watt Onan Microquiet Generator
- Dual Pane All Weather Windows
- MOR/ryde® Sliding Cargo Tray
- 2nd Power Awning (301RETS, 311RKTS, 315RLTS, 351RSQS, 377RLBH, 381DLQS, 387RDFS)
- Slideout Awnings (3) (301RETS, 311RKTS, 315RLTS, 351RSQS)
- Slideout Awnings (4) (377RLBH, 381DLQS)
- Slideout Awnings (5) (375BHFS, 379DBFS, 383FLFS, 387RDFS)
- Exterior Grill
See us for a complete list of features and available options!
